M101GWWF R0

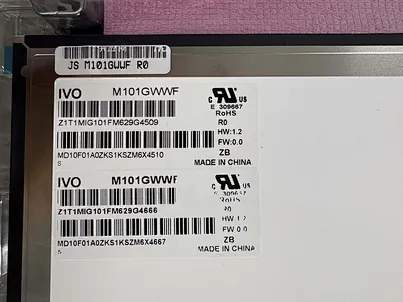

IVO M101GWWF R0 TFT-LCD Display Module Technical Specifications

Model No.: M101GWWF R0
Manufacturer: IVO
Panel Type: a-Si TFT-LCD
Target Applications: Consumer Electronics/Industrial HMI/Portable Devices

1. Core Display Performance

• Active Area: 216.96 × 135.6 mm (10.1"diagonal, 16:10 aspect ratio)

• Native Resolution: 1280 × 800 (WXGA)

• Pixel Pitch: 0.1695 × 0.1695 mm

• Display Mode: IPS (In-Plane Switching)

• Color Depth: 16.7M colors (6-bit + FRC or 8-bit)

• Brightness: 300 cd/m² (typ.) LED backlight

• Contrast Ratio: 800:1 (typ.)

• Viewing Angles: 85°/85°/85°/85° (L/R/U/D @ CR≥10)

2. Electrical Parameters

• Power Supply:

  • Logic Voltage: 3.3V DC ±10%

  • Backlight Voltage: 12V~24V (depending on the LED configuration)

• Power Consumption:

  • 3.5W (typ.) @ 50% brightness

  • <1W standby mode

• Interface:

  • LVDS or eDP (presumed by version)

  • 40 pin connector (FPC/ZIF type)

3. Mechanical Design

• Dimensions: 245.0 × 165.0 × 3.5 mm (with border)

• Surface: Anti-glare/Anti-fingerprint treatment (optional)

• Mounting: 4×M2 Screw Holes (Edge Insert Design)

• Weight: 180g ±10%

4. Environmental Compliance

• Operating Temperature: -20°C ~ +70°C

• Storage Temperature: -30°C ~ +80°C

• Humidity Tolerance: 20%~90% RH

5. Advanced Features

• Touch Panel Compatibility: Capacitive/resistive touch support (optional)

• Low Blue Light Certification: Optional eye protection mode

• Wide Voltage Input: Compatible with 5V/12V systems

• Longevity: 30,000 hours backlight life (L50 standard)

6. Certifications

• RoHS/REACH compliant

• FCC/CE Class B (EMI protection)

• Optional industrial grade ruggedized version

7. Typical Use Cases

• Industrial Control Panels (HMI)

• Portable medical equipment

• In-vehicle infotainment system

• Smart Home Center Control Panel

• IoT Terminal Display
