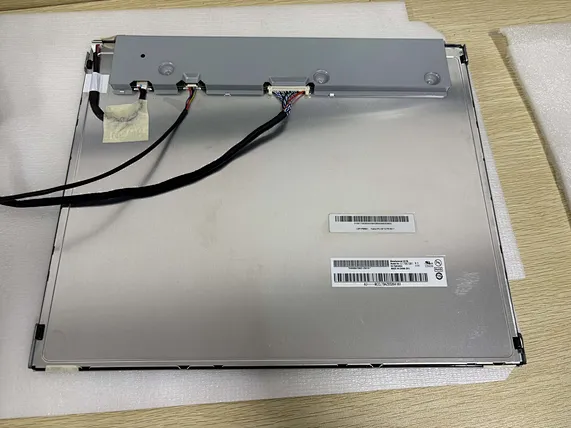

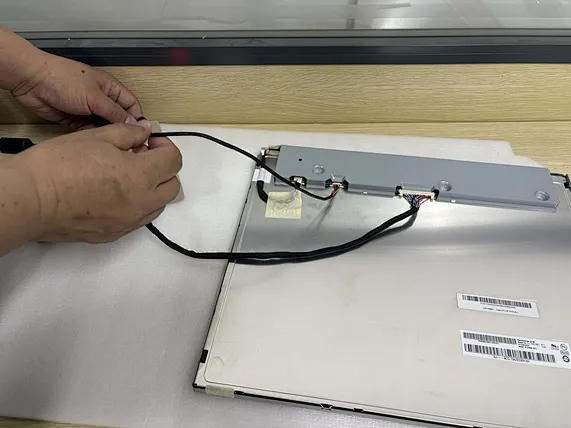

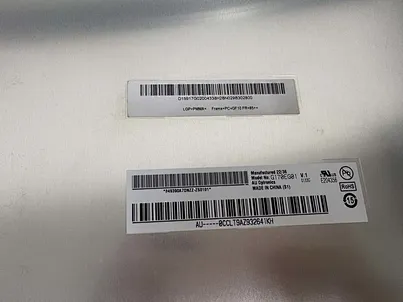

G170EG01 V1
Panel Model: G170EG01 V1
Panel Size: 17.0-inch panel type a-Si TFT-LCD, LCD module
Resolution: 1280(RGB)×1024, SXGA, 96PPI pixel layout RGB vertical stripes
Display Brightness: 350 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (Transmission)
Response time: 20/10ms
Viewing angle: 80/80/60/80
Frame rate: 60Hz
Interface Type: 30 pins LVDS (2 ch, 8-bit) , Terminal
Voltage supply: 5.0V (Typ.)
Application environment: Operating temperature: -30 ~ 85 °C ; Storage temperature: -30 ~ 85 °C
AUO G170EG01 V1 17-inch Industrial LCD Module – Technical Overview
High-Reliability Display Solution for Demanding Applications
Core Features
Optimized Industrial Performance
17-inch TFT-LCD Panel: 1280×1024 (SXGA) resolution with 5:4 aspect ratio, ideal for data-intensive interfaces.
Enhanced Durability: Operates in -30°C to +80°C environments with 90% humidity tolerance, certified for harsh conditions.
High Brightness: 400 cd/m² standard (optional 800 cd/m² for outdoor use), paired with 800:1 contrast ratio.
Advanced Signal Compatibility
Dual Interface Support: LVDS (1 ch, 8-bit) and HDMI 1.4 inputs for flexible system integration.
Wide Voltage Input: 12V DC ±10% with reverse polarity protection, ensuring stable industrial power compatibility.
Longevity & Maintenance
50,000-Hour Backlight Lifespan: Maintains 70% brightness after prolonged use.
Tool-Free Design: Modular components for easy field servicing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Panel Type | a-Si TFT, Matte Anti-Glare Surface |
| Viewing Angles | 85°/85°/85°/85° (L/R/U/D) |
| Response Time | 12ms (G-to-G) |
| Color Gamut | 72% NTSC (typical) |
| Power Consumption | ≤8W (typical) |
| Bezel Material | Powder-coated steel (IP54 option) |
Key Applications
Industrial Control Systems: SCADA, PLC monitoring, and HMI interfaces.
Medical Imaging: Ultrasound machines and diagnostic displays.
Transportation: Fleet management consoles and aviation dashboards.
Energy Sector: Oil/gas monitoring and power grid control panels.
Military: Ruggedized field equipment displays.
Certifications & Compliance
RoHS/REACH/CE compliant
UL 62368-1 safety certified
IP54 Front Protection (optional)
EMC: EN 55032 Class A
Customization Options
Sunlight Readiness: Upgrade to 800 cd/m² with anti-reflective coating.
Touchscreen Integration: Resistive or PCAP touch with glove/water resistance.
Extended Warranty: 5-year industrial coverage available.
Engineered for mission-critical environments where failure is not an option.
