G170ETN02.0
Panel Model: G170ETN02.0
Panel Size: 17.0 inch Panel Type a-Si TFT-LCD, LCD Module
Resolution: 1280(RGB)×1024, SXGA, 96PPI pixel layout RGB vertical bars
Display Brightness: 400 cd/m²
Viewing angle: 80/80/70/70
Frame rate: 60Hz
Contrast ratio: 800:1
Response time: 15/5ms
Interface type: 30 pins LVDS (2 ch, 8-bit) , terminal
Voltage supply: 5.0V (Typ.)
Application environment: Operating temperature: -30 ~ 85 °C ; Storage temperature: -30 ~ 85 °C

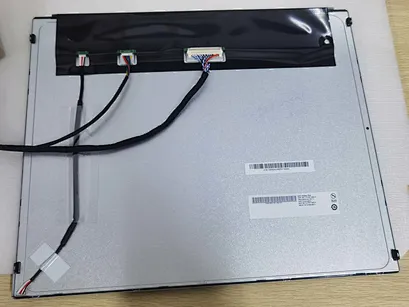

AUO G170ETETN02.0 Industrial-Grade LCD Display Module Technical Specifications
Model No.: G170ETN02.0
Manufacturer: AU Optronics Corp. (AUO)
Panel Type: a-Si TFT-LCD
Intended Application: Industrial/Medical/Embedded Systems
1. Key Display Characteristics
Active Area: 337.92 × 270.336 mm (17.0"diagonal)
Native Resolution: 1280 × 1024 (SXGA) @ 60Hz
Pixel Pitch: 0.264 × 0.264 mm
Display Mode: TN (Twisted Nematic) with Gray Scale Inversion
Color Depth: 16.7M colors (8-bit interface)
Luminance: 1000 cd/m² (typ.) with LED backlight
Contrast Ratio: 1000:1 (typ.)
Viewing Angles: 80°(H)/80°(V) @ CR≥10
2. Electrical Specifications
Power Supply:
Logic Voltage: 3.3V ±5%
Backlight Voltage: 54V (typ.)
Power Consumption:
14.1W (typ.) @ full brightness
<0.5W sleep mode
Interface:
LVDS 1 ch, 8-bit
20-pin FPC connector
3. Mechanical Specifications
Outline Dimensions: 359.0(W) × 291.5(H) × 13.5(D) mm
Surface Treatment: Anti-glare hard coating (3H)
Mounting: M4 screw holes (8 positions)
Weight: 1800g (max)
4. Environmental Ratings
Operating Temp: -30°C to +80°C
Storage Temp: -40°C to +85°C
Humidity: 10% to 90% RH (non-condensing)
5. Special Features
50000hrs LED backlight lifetime (L70)
Mercury-free design
IP65 front panel option available
MIL-STD-810G compliant shock/vibration resistance
6. Compliance & Certification
CE, FCC Class B
RoHS 2.0 compliant
REACH SVHC <0.1%
7. Typical Applications
Medical diagnostic imaging
Industrial process control
Ruggedized military displays
Outdoor digital signage
Transportation systems
