RK3568

The SOM-6580, built by AbruiDisplay, is based on the Rexchip RK3568 quad-core 64-bit Cortex-A55 processor, which adopts the new ARM v8.2-A architecture, integrates a dual-core GPU, a high-performance VPU, and a high-efficiency NPU, with a main frequency of up to 2.0 GHz, supports up to 8 GB of RAM capacity, and provides rich expansion interfaces. It supports up to 8GB of memory capacity and provides rich expansion interfaces, with technical advantages such as high computing power, large-capacity storage and high scalability.

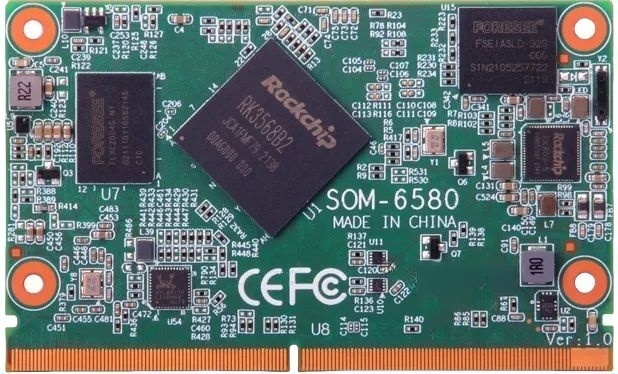

Based on this processor, AbruiDisplay's newly released embedded ARM core board, SOM-6580, which integrates the Mial-G52 GPU and supports multiple HDMI, LVDS, and MIPI DSI display interface outputs, with HDMI achieving a maximum resolution of 4096x2160@60Hz; Onboard 2~8GB LPDDR4X memory, support onboard eMMC, the whole board up to 128GB, support SATA3.0 high-speed storage.

SOM-6580 supports dual Gigabit Ethernet ports and provides rich serial and USB ports for better network expandability. In addition, SOM-6580 can be connected to the backplane via SMARC2.1 standard gold finger, which can be used for more external device control and expansion; it supports Android, Linux, Debian and other operating systems, which can achieve a wider range of application scenarios.
